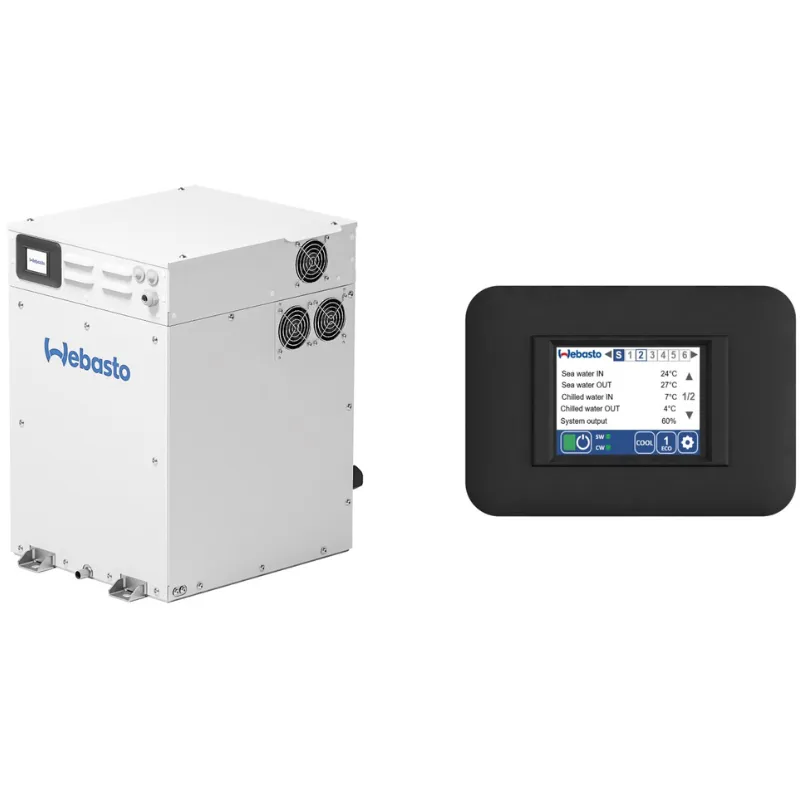

The Webasto BlueCool VX-Series MyTouch is a cutting-edge marine air conditioning system designed for powerful, efficient, and reliable cooling. Perfect for luxury yachts and large vessels, the BlueCool VX-Series offers a modular, scalable solution to meet your specific climate control needs.

Features:

• Modular Design: Customize your cooling capacity by connecting multiple units to suit your vessel’s size.

• MyTouch Digital Display: Easy-to-use touchscreen control for precise temperature adjustments and real-time system monitoring.

• Energy Efficient: Designed for low power consumption, helping you save energy on long voyages.

• Quiet Operation: Enjoy powerful cooling without the noise thanks to advanced noise-dampening technology.

• Durable and Marine-Ready: Built with corrosion-resistant, marine-grade materials to handle the toughest sea conditions.

• Cooling Capacity: Available in multiple configurations: 24,000 BTU/h to 572,000 BTU/h (depending on the modular setup)

• Power Supply: 230V/50Hz or 400V/50Hz (Depending on model). Also available in 60Hz versions for different regions.

•  Power Consumption:Optimized for energy efficiency with a power consumption range of 3.6 kW to 10.6 kW, depending on capacity and load.

• Dimensions (Per Module):

  • Height: 900 mm

  • Width: 470 mm

  • Depth: 420 mm

  • (Dimensions can vary slightly based on configuration)

• Weight: Approx. 90 kg per chiller module.

• Refrigerant Type: R-410A (Environmentally friendly and compliant with modern standards).

• Operating Temperature Range: -10°C to +45°C (14°F to 113°F), designed to function in a wide variety of climates, including extreme marine conditions.

• Water Flow Requirements: Flow rate: 80-220 l/min depending on cooling capacity.

• Noise Level: Super quiet operation with sound levels typically below 50 dB at full load (depending on installation and configuration).

• Connectivity & Control: MyTouch Control Interface with an intuitive 2.5-inch touchscreen for temperature regulation, diagnostics, and system monitoring. Optional integration with onboard management systems for enhanced control.

• Installation Options: Modular system allows flexible installation in tight spaces, perfect for large vessels with limited engine room space.
