Run Dry Protection to Keep You Cool

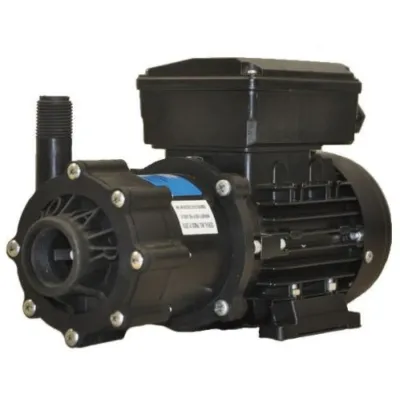

The TPM1000 is a magnetically driven pump with no shaft seal and the motor is Open Drop Proof (ODP). The hardened Carbon bushing allows for extended run dry time without any damage to the pump head. The impeller may be trimmed to modify flows or compensate for liquids of higher viscosity.

Pump Features:

• Pumps 1,000 gallons/hr

• Run Dry and Thermal Overload Protection

• In a Run Dry scenario, the pump will shut down. (Simply let it cool down or hose it down to assist)

• 115V or 230V

• One Phase, all cords are 56“ in length and are U.L. LISTED 18/3 wire

• The pump is not self-priming and requires a flooded suction

• ISO 8846 Marine Ignition Protected

Product Specifications:

• Weight: 12 lbs

• Maximum Flow: 17.2 GPM (54.8 LPM)

• Maximum Head: 27 Feet of Head @ 11.7 PSI

• Maximum Internal Pressure: 50 PSI

• Maximum Liquid Temperature: 180° F (82° C)

• Hertz: 50/60 Hz

• Amps: 1.6

• Horsepower: 1/8 HP

• RPM: 3450
