Run Dry Protection to Keep You Cool

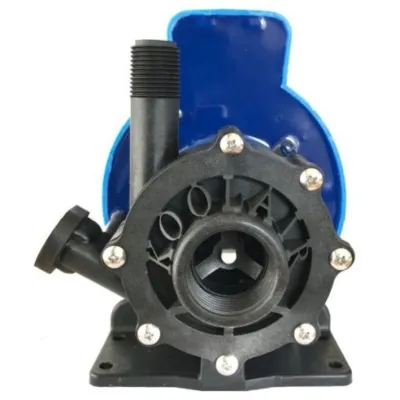

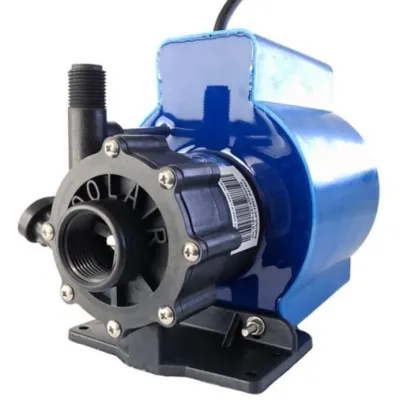

The SPM1000 is a magnetically driven pump with no shaft seal. The pump is epoxy encapsulated, which allows the SPM1000 pump to run fully submerged in many liquids or in open air for complete moisture protection. The hardened Carbon bushing allows for extended run dry time without any damage to the pump head. The impeller may be trimmed to modify flows or compensate for liquids of higher viscosity.

Pump Features:

• Pumps 1,000 gallons/hr

• Run Dry and Thermal Overload Protection

• In a Run Dry scenario, the pump will shut down (Simply let it cool down or hose it down to assist)

• 115V or 230V

• One Phase, all cords are 56“ in length and are U.L. LISTED 18/3 wire

• The pump is not self-priming and requires a flooded suction

Product Specifications:

• Weight: 18 lbs

• Maximum Flow: 1000 GPH – 17.2 GPM (54.8 LPM)

• Maximum Head: 27 Feet of Head @ 11.7 PSI

• Maximum Internal Pressure: 25 PSI

• Maximum Liquid Temperature: 130° F (54° C)

• Hertz: 50/60 Hz

• Amps: 1.6/0.9

• Horsepower: 1/8 HP

• RPM: 3450
