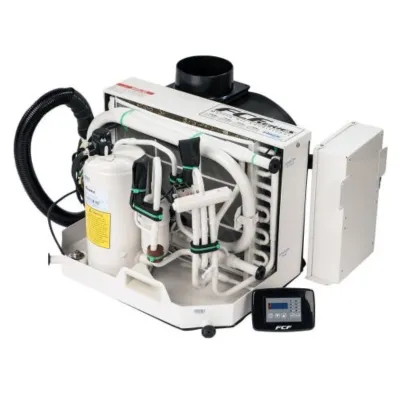

Interior Cabin Cooling

FCF innovation starts with a balanced system for noise elimination. The compressor is carefully mounted to greatly reduce unwanted vibrations and noises that can transfer into the cabin.

FCF stands for quality, including a long-lasting, baked-on enamel finish, a robust blower that can handle multiple vents and comes standard with a digital control panel.

Product Features:

• Reverse cycle heat standard

• Extra low compressor vibration and noise

• Replaceable air filter for cleaner air

• High velocity / 3-speed / 360° rotatable blower

• Units available in 12,000 and 16,000 BTU/h

• 115V and 230V

• Corrosion-free stainless steel condensation tray

• Multi-inlet port evaporator

Product Specifications:

FCF Classic 12,000:

• Rated voltage: 115V

• Part number: FCF0012000GS

• Cooling capacity: 12,000 BTU/h

• Rated frequency: 60Hz

• Average load: 8.5 A

• Min. supply air: 50 in² (323 cm²)

• Min. return air: 100 in² (645 cm²)

• Net weight: 68 lbs. (31 kg)

• Blower output: 410 cfm (696 m³/h)

• Ducting collar (Diameter): 5 in (127 mm)

• Seawater inlet / outlet (Diameter): 0.750 in (19 mm)

• Drain pan outlet (Diameter): 0.625 in (15.9 mm)

FCF Classic 16,000:

• Rated voltage: 230V

• Part number: FCF0012023G

• Cooling capacity: 16,000 BTU/h

• Rated frequency: 50 / 60Hz

• Average load: 4.5 A

• Min. supply air: 60 in² (387 cm²)

• Min. return air: 140 in² (903 cm²)

• Net weight: 76 lbs (33 kg)

• Blower output: 505 cfm (858 m³/h)

• Ducting collar (Diameter): 5 in (127 mm)

• Seawater inlet / outlet (Diameter): 0.750 in (19 mm)

• Drain pan outlet (Diameter): 0.625 in (15.9 mm)
