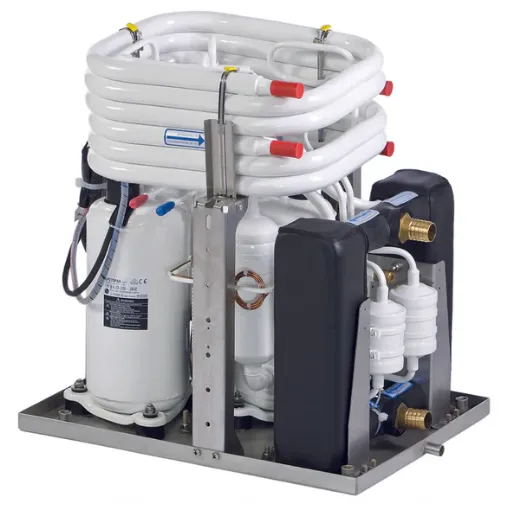

The new BlueCool C-Series is a highly compact and efficient chiller solution, tailored for yachts with multiple independent zones, delivering between 16,000 BTU/h to 108,000 BTU/h of cooling power. Its design ensures optimal performance in tropical climates, while its space-saving form, ease of installation, and noise reduction features make it a preferred choice for smaller to mid-sized vessels, offering both reliability and comfort.

• The new BlueCool C-Series: BlueCool Expert Tool - allows remote access to core systems operations, parameter settings and trouble shooting diagnostics from anywhere in the world with USB cable and Wi-Fi signal

• Improved performance and up to 15% higher efficiency

• Continuous cooling capacity even in tropical conditions

• Improved footprint size for ease of installation

• Feature rich electronics for easy system control with

• Unique adaptive hardware for potential add-ons and diagnosis via USB cable

• Optional CAN-Bus for optimized adaptation to boat systems

• Compressor noise is reduced by up to 25%

• Easy sea water and chilled water connections at one side

• Strong stainless steel tray and condensate drain

• Cooling and heating via reverse cycle function as a standard

• High quality epoxy paint protection

• 1, 2, 3 or 4 stage systems for variable load demands

Product Specifications:

• Model: C16 M

• Cooling capacity: 16,000 BTU/h / 4.7 kW

• Number of compressors: 1

• Supply voltage: 230 V

• Current draw: 4.4 – 6.0 A

• Net weight: 66 lbs / 30 kg

• Dimensions (L x W x H): 15.2 x 11.4 x 13.8 in (385 x 290 x 350 mm)

Model: C20 M

• Cooling capacity: 20,000 BTU/h / 5.9 kW

• Number of compressors: 1

• Supply voltage: 230 V

• Current draw: 6.9 – 8.0 A

• Net weight: 66 lbs / 30 kg

• Dimensions (L x W x H): 17.3 x 12.6 x 14.4 in (440 x 320 x 365 mm)

Model: C27 M

• Cooling capacity: 27,000 BTU/h / 7.9 kW

• Number of compressors: 1

• Supply voltage: 230 V

• Current draw: 8.6 – 9.2 A

• Net weight: 88 lbs / 40 kg

• Dimensions (L x W x H): 17.3 x 13.4 x 15.7 in (440 x 340 x 400 mm)

Model: C32 T

• Cooling capacity: 32,000 BTU/h / 9.4 kW

• Number of compressors: 2

• Supply voltage: 230 V

• Current draw: 8.8 – 12.0 A

• Net weight: 169 lbs / 77 kg

• Dimensions (L x W x H): 20.9 x 15.7 x 19.3 in (530 x 400 x 490 mm)

Model: C40 T

• Cooling capacity: 40,000 BTU/h / 11.7 kW

• Number of compressors: 2

• Supply voltage: 230 V

• Current draw: 13.8 – 16.0 A

• Net weight: 176 lbs / 80 kg

• Dimensions (L x W x H): 20.9 x 15.7 x 19.3 in (530 x 400 x 490 mm)

Model: C55 T

• Cooling capacity: 55,000 BTU/h / 16.1 kW

• Number of compressors: 2

• Supply voltage: 230 V

• Current draw: 17.2 – 18.4 A

• Net weight: 198 lbs / 90 kg

• Dimensions (L x W x H): 20.9 x 15.7 x 21.7 in (530 x 400 x 550 mm)

Model: C81 R

• Cooling capacity: 81,000 BTU/h / 23.7 kW

• Number of compressors: 3

• Supply voltage: 230 V

• Current draw: 25.8 – 27.6 A

• Net weight: 308 lbs / 140 kg

• Dimensions (L x W x H): 29.5 x 16.5 x 21.7 in (750 x 420 x 550 mm)

Model: C108 Q

• Cooling capacity: 108,000 BTU/h / 31.7 kW

• Number of compressors: 4

• Supply voltage: 230 V

• Current draw: 34.4 – 36.8 A

• Net weight: 385 lbs / 175 kg
