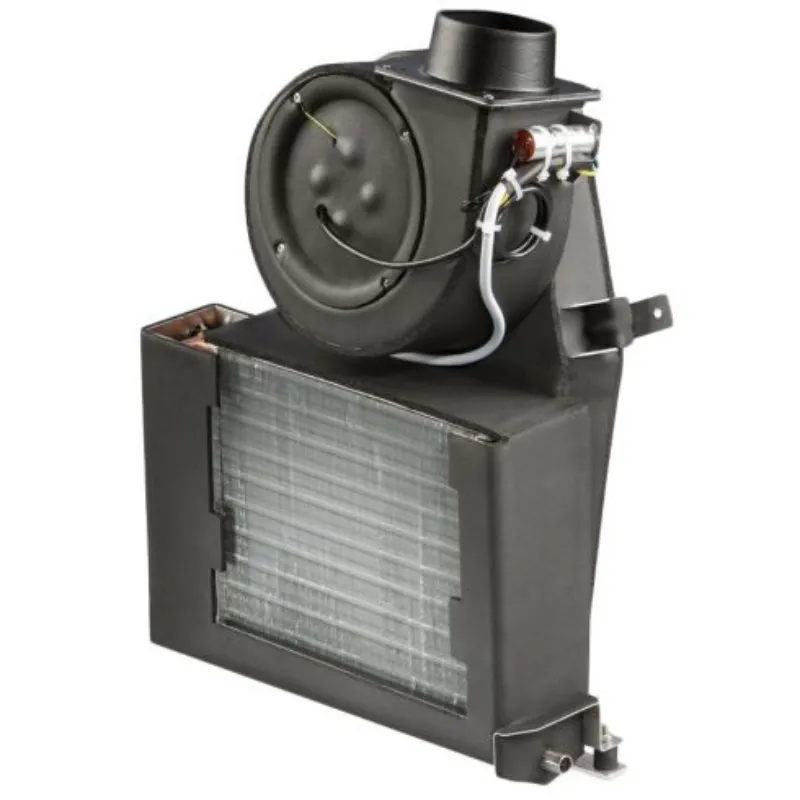

Webasto provides an extensive air handler portfolio in different layouts with a performance range from 4,000 – 36,000 BTU/h to suit all sizes and space requirements of your boat. The three construction forms of the BlueCool A-Series – Compact, Slimline and Low Profile – are distinguished by their especially compact, slim and flat design.

Designed with innovative features, such as vibration dampers, remote bleeder and the innovative Instant Drain Condensate Management System, the A-series meets the highest demands for comfort. The modular concept of the BlueCool A-series provides maximum flexibility and can easily be extended with accessory components such as the new Electric Heat Module (EHM) and the Flow Control Valve.

Features:

Three possible shapes to cope with any installation demand: Compact, Slimline and Low Profile
New modular system with various options
Innovative Webasto Instant Drain Condensate Management
High quality stainless steel design
High performance with high cooling capacity and high air flow
Super Silent with flexible vibration isolation mounts & larger ducts to reduce noise from air speed
Oversized heat exchanger tested under tropical conditions

Product Specifications:

Cooling capacity: 6,000 - 36,000 BTU/h (1.9 - 10.7 kW)
Heating function possible with additional electric heat module EHM
Nominal voltage: 230 V
Frequency: 50/60 Hz
Dimensions H x W x L (mm) / Dimensions H x W x L (inch):

588 x 217 x 411 - 666 x 218 x 581 / 23.1 x 8.5 x 16.2 - 26.2 x 8.6 x 22.9

Weight (kg) / Weight (lbs): 7 - 12 / 15.4 - 26.5
